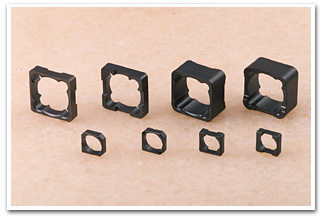

Products - SMD
[Menu]
SI
(1) Ordering Code ( 產品名稱 )
F4D
│
Material
材質
SI
│
Type
形狀
12.3
│
Outside
Diameter (A)
外徑(A)
×
10.85
│
Inside Diameter (C)
內徑(C)
6.8
│
Length (D)
長度(D)
**Combined with DRUM CORE (配套 DR CORE)
F4D DR 10×7 B6.5 F5.0
(2) Suitable Materials ( 適用材質)
F3B,F4D,C5A
(3) APPLICATION (產品應用)
FOR COMMUNICATION DEVICES, NOTEBOOK COMPUTER, PDA
OA MACHINE, DIGITAL CAMERA...
通信器材, 手提電腦, OA機器, 數位相機, 個人數位處理器...

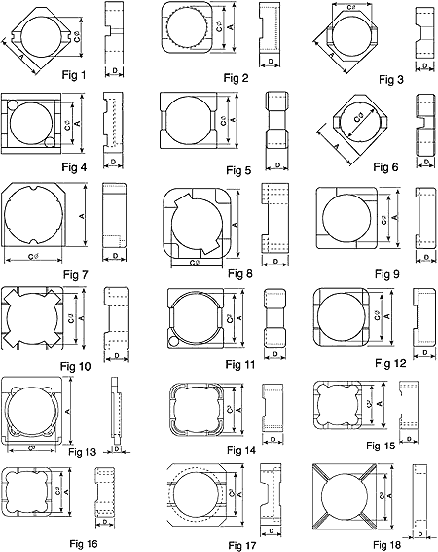

(4) SHAPE (圖形標示)
(5) DIMENSION (尺寸)
No.
Core
Fig
Combined
1
SI 4.8 ×4.1 ×2.1
1
DR 4.8 ×2.7D3
2
SI 5 ×3.8 ×1.65
2
DR 4.5 ×1.65 (S) D3
3
SI 5.05 ×4.1 ×1.6
3
DR 3.9 ×1.7 (S)
4
SI 5.1 ×3.85 ×1.45
18
DR 3.6 ×1.1
5
SI 5.15 ×4.1 ×1.6
3
DR 3.9 ×1.8 (S) 中心凹點
6
SI 5.2 ×3.8 ×1.8
17
DR 4.5 ×1.65 (小S) D3
7
SI 5.6 ×4.8 ×1.25
1
DR 5.6 ×1.8D3
8
SI 5.8 ×4.1 ×2.1
4
DR 3.8 ×2.1
9
SI 6 ×5 ×2
5
DR 4.6 ×2.3
10
SI 6.0 ×5.2 ×1.7
6
DR 4.9 ×1.8 (S)
11
SI 6.0 ×5.2 ×2.2
7
DR 4.75 ×2.6
12
SI 6.2 ×4.4 ×2.3
8
DR 4.0 ×2.4
13
SI 6.3 ×4.9 ×2.1
9
DR 4.1 ×2.4
14
SI 6.6 ×5.7 ×2.1
1
DR 6.6 ×2.7D3
15
SI 7.3 ×5.7 ×3.5
10
DR 5.3 ×3.6
16
SI 7.3 ×6.2 ×2.8
11
DR 5.1 ×2.85
17
SI 8 ×6.7 ×5.8
6
DR 6.3 ×6 (S)
18
SI 9.7 ×8.2 ×5.7
12
DR 7.4 ×5.8 中心凹點
19
SI 10 ×8.2 ×2.6
1
DR 10 ×3.6D3
20
SI 10 ×8.6 ×2.6
1
DR 10 ×3.6D3
21
SI 11.9 ×8.2 ×1.6
13
DR 9 ×2 (S) D3
22
SI 12.3 ×10.85 ×5
14
DR 10 ×5.2
23
SI 12.5 ×10.5 ×6.8
15
DR 9.6 ×7
24
SI 12.5 ×10.5 ×6.6
15
DR 9.8 ×7
25
SI 12.6 ×10.6 ×6
16
DR 9.5 ×7 (S)
26
SI 13 ×11.2 ×3.2
1
DR 13 ×4.2D3
