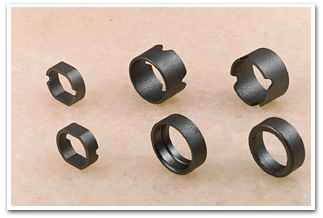

RI
|
|
|
(1) Ordering Code ( 產品名稱 )
|
C5
│
Material
材質 |
RI
│
Type
形狀 |
4.5
│
 Outside
Diameter (A)
外徑(A)
|
×
|
3.6
│
Inside
Diameter (C)
內徑(C)
|
2
│
Length (D)
長度(D) |
**Combined
with DRUM CORE (配套 DR CORE)
C5 DR 3.5×1.9 B1.1 F1.1 |
|
|
(2) Suitable Materials ( 適用材質)
|
| F3B,F4D,C5A |
| |
| (3) APPLICATION (產品應用) |
FOR COMMUNICATION DEVICES, NOTEBOOK COMPUTER,
PDA, OA MACHINE, DIGITAL CAMERA...
通信器材, 手提電腦, OA機器, 數位相機, 個人數位處理器... |
|
|

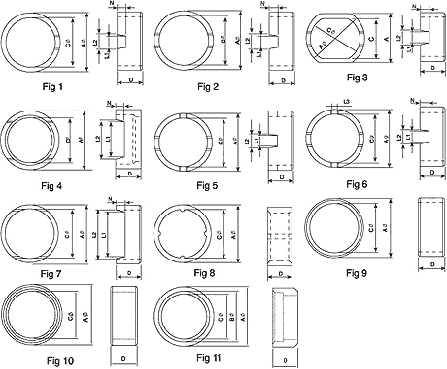

(4) SHAPE (圖形標示)
|
 |
| (5) DIMENSION (尺寸) |
| |
| No. |
Core |
Fig |
Combined |
| 1 |
RI 3.25 ×2.58 ×2 |
1 |
DR 2.5 ×1.9 |
| 2 |
RI 3.3 ×2.68 ×2.6 |
1 |
DR 2.5 ×1.9 |
| 3 |
RI 3.9 ×3.1 ×1.65 |
2 |
DR 3.9 ×2.1 (S) D3 |
| 4 |
RI 4 ×3 ×1.6 |
2 |
DR 4 ×2.2 D3 |
| 5 |
RI 4.5 ×3.6 ×2 |
1 |
DR 3.5 ×1.9 |
| 6 |
RI 5.8 ×4.8 ×1.6 |
2 |
DR 4.45 ×2.2 |
| 7 |
RI 5.8 ×4.8 ×3.1 |
2 |
DR 4.3 ×3.3 |
| 8 |
RI 6.6 ×4.7 ×1.5 |
4 |
DR 4.5 x 1.8 |
| 9 |
RI 6.8 ×5.8 ×2.3 |
2 |
DR 5.4 ×2.6 |
| 10 |
RI 6.8 ×5.8 ×3.4 |
2 |
DR 5.3 ×4 |
| 11 |
RI 6.9 ×5.9 ×3.7 |
2 |
DR 5.4 x 4 (S) |
| 12 |
RI 7 ×5 ×1.7 |
7 |
DR 4.9 ×1.7 |
| 13 |
RI 7 ×6 ×3.5 |
11 |
DR 5 ×3.5 |
| 14 |
RI 7.3 ×6.1 ×1.9 |
9 |
DR 5.4 ×2.5 |
| 15 |
RI 7.0 ×6 ×1.45 |
8 |
DR 5.4 ×2 |
| 16 |
RI 7.8 ×6.3 ×2.4 |
11 |
DR 6 ×2.7 |
| 17 |
RI 7.8 ×6.5 ×4.2 |
2 |
DR2W 7.8 ×7 (S) D3 RCH |
| 18 |
RI 7.9 ×6.2 ×2.7 |
5 |
DR 5.4 ×3.2 (S) |
| 19 |
RI 9 ×7 ×3.35 |
2 |
DR 6.45 ×3.45 |
| 20 |
RI 9.85 ×8 ×1.6 |
5 |
DR 7.2 ×2.3 (S) |
| 21 |
RI 9.85 ×8
×1.6 |
6 |
DR 7.2 ×2.3 (S) |
| 22 |
RI 9.85 ×8 ×3.7 |
5 |
DR 7.2 ×4.3
(S) |
| 23 |
RI 9.8 ×8 ×3.8 |
2 |
DR 7.4 ×4 |
| 24 |
RI 9.9 ×8.2 ×3.2 |
3 |
DR T10 ×5 (S) D3 |
| 25 |
RI 10 ×8 ×3.5 |
2 |
DR 7.6 x 3.6 |
| 26 |
RI 10 ×8.2 ×4.4 |
2 |
DR 4W10 ×8 (S) D3 RCH |
| 27 |
RI 12.2 ×10.6 ×6.8 |
5 |
DR 9.8 ×7 SO |
| 28 |
RI 14.4 ×11 ×8.2 |
10 |
DR4W 10 ×8.4 (S) |
| 29 |
RI 14.2 ×12.2 ×5.6 |
5 |
DR 11 ×6.2 (S) |
|
|
|
| |
| |
|
