(1) Ordering Code ( 產品名稱 )
|
F4D
│
Material
材質
|
DRT
│
Type
形狀
|
7.8
│
 Outside
Diameter (A)
外徑(A)
|
×
|
3.5
│
Length (D)
長度(D)
|
(S)
│
Slot
出線槽(D)
|
F4D
│
Material
材質 |
DRT
│
Type
形狀 |
7.8
│
Outside
Diameter (A)
外徑(A)
|
×
|
16.5
│
Length (D)
長度(D) |
(S  T)
│ │
Slot Plating
出線槽 鍍銀
|
**Combined with SI CORE (配套 SI CORE)
F4D SI 5×3.5×1.65 |
|
|
(2) Suitable Materials ( 適用材質)
|
FOR COMMUNICATION DEVICES, NOTEBOOK COMPUTER,
PDA...
通信器材, 手提電腦, 個人數位處理器... |
| |
| (3) APPLICATION (產品應用) |
FOR COMMUNICATION DEVICES, NOTEBOOK COMPUTER,
PDA, OA MACHINE, DIGITAL CAMERA...
通信器材, 手提電腦, OA機器, 數位相機, 個人數位處理器... |
|
|

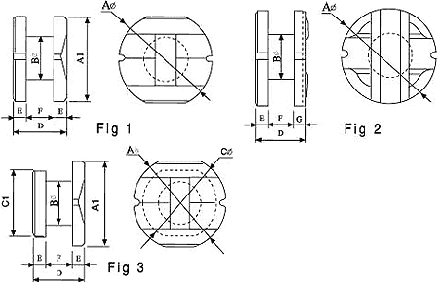

(4) SHAPE (圖形標示)
|
 |
| (5) DIMENSION (尺寸) |
| |
| No. |
Core |
Fig |
| 1 |
DRT 3.5 ×2.1 (S)
|
1 |
| 2 |
DRT 4.5 ×3.2 (S) |
1 |
| 3 |
DRT 5 ×2.9 (S) |
2 |
| 4 |
DRT 5.6 ×4.5 (S) |
2 |
| 5 |
DRT 5.8 ×4.5 (S) |
1 |
| 6 |
DRT 7.5 ×5 (S) |
2 |
| 7 |
DRT 7.8 ×3.5 (S) |
1 |
| 8 |
DRT 7.8 ×4.5 (S) D3 |
3 |
| 9 |
DRT 7.8 ×5 (S) |
1 |
| 10 |
DRT 9.5 ×5 (S) |
2 |
| 11 |
DRT 10 ×4 (S) |
1 |
| 12 |
DRT 10 ×5 (S) D3 |
3 |
| 13 |
DRT 10 ×5.4 (S) |
1 |
|
