DR
|
|
|
(1) Ordering Code ( 產品名稱 )
|
F4D
│
Material
材質
|
DR
│
Type
形狀
|
4.5
│
 Outside
Diameter (A)
外徑(A)
|
×
|
16.5
│
Length (D)
長度(D) |
(S)
│
Slot
出線槽 |
D3
│
Shape
形體
|
**Combined with SI CORE (配套 SI CORE)
F4D SI 5×3.5×1.65 |
|
|
(2) Suitable Materials ( 適用材質)
|
| F3B,F4D,C5A |
| |
| (3) APPLICATION (產品應用) |
FOR COMMUNICATION DEVICES, NOTEBOOK COMPUTER,
PDA, OA MACHINE, DIGITAL CAMERA...
通信器材, 手提電腦, OA機器, 數位相機, 個人數位處理器... |
|
|

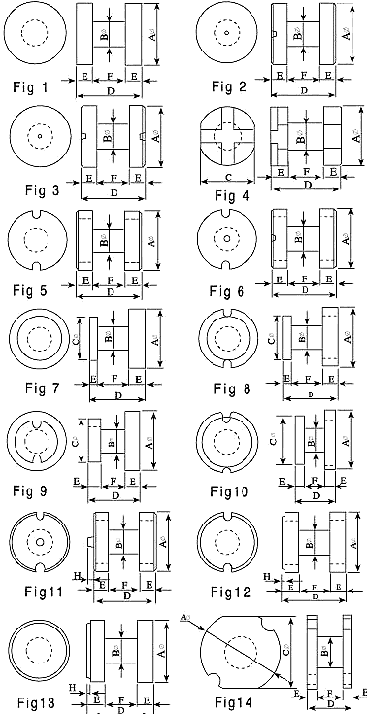

(4) SHAPE (圖形標示)
|
 |
| (5) DIMENSION (尺寸) |
| |
| No. |
Core |
Fig |
| 1 |
DR 2.5 ×1.9 |
1 |
| 2 |
DR 3.5 ~ 1.9 |
1 |
| 3 |
DR 3.6 ×1.1 |
1 |
| 4 |
DR 3.8 ×2.1 |
1 |
| 5 |
DR 3.9 ×1.7 (S) |
5 |
| 6 |
DR 3.9 ×1.7 (S) 中凹 |
6 |
| 7 |
DR 3.9 ×2.1 (S) D3 |
8 |
| 8 |
DR 4 ×2.2D3 |
7 |
| 9 |
DR 4 ×2.4 |
1 |
| 10 |
DR 4.1 ×2.4 |
1 |
| 11 |
DR 4.3 ×3.3
|
1 |
| 12 |
DR 4.45 ×2.2 |
1 |
| 13 |
DR 4.5 ×1.65 (S) D3 |
8 |
| 14 |
DR 4.5 ×1.65 (小S) D3 |
9 |
| 15 |
DR 4.5 ×1.8 |
1 |
| 16 |
DR 4.5 ×2.8S0 |
14 |
| 17 |
DR 4.6 ×2.3 |
1 |
| 18 |
DR 4.75 ×2.6 |
4 |
| 19 |
DR 4.8 ×2.7D3 |
7 |
| 20 |
DR 4.9 ~ 1.7 |
1 |
| 21 |
DR 4.9 ×1.8
(S) |
5 |
| 22 |
DR 5 ×3.5 |
1 |
| 23 |
DR 5.1 ×2.85 (S) |
5 |
| 24 |
DR 5.3 ×3.6 |
1 |
| 25 |
DR 5.4 ×2.5 |
1 |
| 26 |
DR 5.4 ~ 3.2 (S) |
5 |
| 27 |
DR 5.6 ×1.8D3 |
7 |
| 28 |
DR 5.8 ×3.3 DM |
13 |
| 29 |
DR 5.8 ×4S0 |
14 |
| 30 |
DR 6 ×2.7 |
3 |
| 31 |
DR 6.3 ×6 (S)
|
5 |
| 32 |
DR 6.45 ×3.45 |
1 |
| 33 |
DR 6.6 ×2.7D3 |
7 |
| 34 |
DR 6.8 ×4DM |
13 |
| 35 |
DR 7.2 ×4.3 (S) |
5 |
| 36 |
DR 7.2 ×2.7DM (S) |
11 |
| 37 |
DR 7.4 ×5.8 |
2 |
| 38 |
DR 7.5 ×4.6DM |
13 |
| 39 |
DR 7.6 ×3.6 |
1 |
| 40 |
DR 7.8 ×4.4S0 |
14 |
| 41 |
DR 8.4 ×4.6DM (S)
|
12 |
| 42 |
DR 9 × 2 (S) D3 |
10 |
| 43 |
DR 9 ×4.1 |
2 |
| 44 |
DR 9.2 × 10.5 DM (S) |
12 |
| 45 |
DR 9.5 × 4.2 DM (S) |
11 |
| 46 |
DR 9.5 × 7 (S) |
5 |
| 47 |
DR 9.6 × 7 |
1 |
| 48 |
DR 9.8 × 4 DM |
13 |
| 49 |
DR 9.8 × 7 |
1 |
| 50 |
DR 9.8 × 7 SO |
5 |
| 51 |
DR 10 ×3.6D3
|
7 |
| 52 |
DR 10 × 5.2 |
1 |
| 53 |
DR 10 × 5 SO |
14 |
| 54 |
DR ll × 6.2 (S) |
5 |
| 55 |
DR 11 × 8.9 |
2 |
| 56 |
DR 13 ×4.2D3 |
7 |
| 57 |
DR 13.8 × 6.4 DM (S) |
12 |
|
|
|
| |
| |
|
