T
|
|

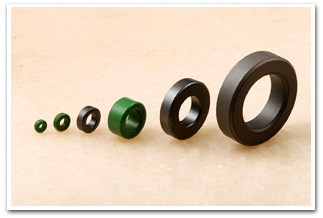

| T CORE |
|
|
(1) Ordering Code ( 產品名稱 )
|
C5A
│
Material
材質
|
T
│
Type
形狀
|
22.5
│
 Outside
Diameter (A)
外徑(A)
|
×
|
13.8
│
Inside
Diameter (C)
內徑(C)
|
×
|
6.4
│
Length (D)
長度(D)
|
|
|
(2) Suitable Materials ( 適用材質)
|
| F3B,F4D,F8,C4A,C5A,C5,C5C,C6,E1C,E2,E2D,E3,Y8B,Y11
|
|
|
(3) SHAPE (圖形標示)
|
 |
| (4) DIMENSION (尺寸) |
| |
| 1 |
T 2 X 2 X 1.5 |
| 2 |
T 4.8 X 2.8 X 1.5 |
| 3 |
T 6 X 3 X 2 |
| 4 |
T 8 X 4 X 3 |
| 5 |
T 9 X 5 X 3 |
| 6 |
T 10 X 6 X 4 |
| 7 |
T 12.7 X 7.9 X 6.35 |
| 8 |
T 16 X 12 X 8 |
| 9 |
T 20 X 10 X 10 |
| 10 |
T 25 X 15 X 12 |
| 11 |
T 36 X 23 X 16 |
|
|
|
| |
| |
|
