RWW
|
|
|
(1) Ordering Code ( 產品名稱 )
|
C5A
│
Material
材質 |
RWW
│
Type
形狀 |
2.8
│
 Outside
Diameter (A)
外徑(A)
|
× |
8.1
│
Length (D)
長度(D) |
|
|
(2) Suitable Materials ( 適用材質)
|
F1B,F3B,F4D,F8,C4A,C5A,C5C,C5,C6,E1C,E2,E2D,E3,Y5E,Y8B,
Y8C,Y8L,Y9,Y9D,Y11 |
|
|

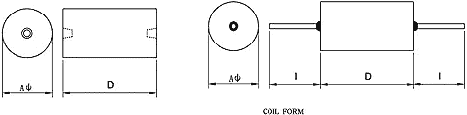

(3) SHAPE (圖形標示)
|
 |
| (4) DIMENSION (尺寸) |
| |
| 1 |
RWW 3 ×6 |
| 2 |
RWW 3 ×8 |
| 3 |
RWW 3 ×10 |
| 4 |
RWW 3 ×12 |
| 5 |
RWW 4 ×10 |
| 6 |
RWW 4 ×20 |
| 7 |
RWW 5 ×15 |
| 8 |
RWW 5 ×20 |
| 9 |
RWW 5 ×22 |
| 10 |
RWW 6 ×20 |
| 11 |
RWW 6 ×31.5 |
|
|
|
| |
| |
|
