RID
|
|
|
(1) Ordering Code ( 產品名稱 )
|
C6
│
Material
材質 |
RID
│
Type
形狀 |
7.5
│
Width (A)
寬度(A) |
10.3
│
Thickness (D)
高度(D) |
×
|
13.3
│
Length (B)
長度(B) |
×
|
H4.0
│
 Hole
(c)
內孔(c) |
|
|
(2) Suitable Materials ( 適用材質)
|
| F4D,F8,C5A,C5,C6,E1C,E2,E2D,E3,Y5E,Y8B,Y8C,Y9,Y9D,Y11
|
|
|

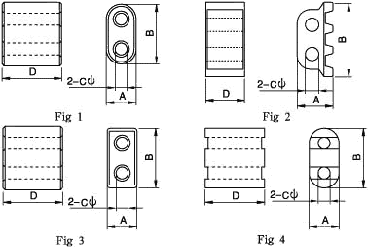

(3) SHAPE (圖形標示)
|
 |
| (4) DIMENSION (尺寸) |
| |
| 1 |
R1D 2 ×1.5 ×3.5 H0.9 |
1 |
| 2 |
R1D 2 ×2.8 ×5 H1.1 |
1 |
| 3 |
R1D 2.3 ×5 ×7.5 H0.8 |
4 |
| 4 |
R1D 2.4 ×2.6 ×5 H0.9 |
2 |
| 5 |
R1D 2.6 ×2 ×5.3 H1.2 |
1 |
| 6 |
R1D 3 ×3.5 ×6 H1.5 |
1 |
| 7 |
R1D 3 ×3 ×5 H1.25 |
1 |
| 8 |
R1D 3 ×5 ×5 H1.25 |
1 |
| 9 |
R1D 3 ×6 ×4 H1.5 |
1 |
| 10 |
R1D 3.5 ×5 ×6.5 H1.8 |
1 |
| 11 |
R1D 3.8 ×10 ×6.9 H1.9 |
1 |
| 12 |
R1D 4 ×6.2 ×7 H1.8 |
1 |
| 13 |
R1D 4.1 ×4 ×6.6 H2.0 |
1 |
| 14 |
R1D 4.1 ×6.6 ×7 H1.8 |
1 |
| 15 |
R1D 5.35 ×8 ×9.4 H2.6 |
3 |
| 16 |
R1D 6.5 ×4 ×12 H4.0 |
1 |
| 17 |
R1D 7.4 ×14.7 ×13.4 H3.8 |
1 |
| 18 |
R1D 7.5 ×4 ×13.5 H4.2 |
1 |
| 19 |
R1D 7.5 ×7 ×13.3 H4.0 |
1 |
| 20 |
R1D 8 ×7 ×15 H5.0 |
1 |
|
|
|
| |
| |
|
