RH
|
|
| RH CORE |
|
|
(1) Ordering Code ( 產品名稱 )
|
C5A
│
Material
材質
|
RH
│
Type
形狀
|
14.2
│
 Outside
Diameter (A)
外徑(A)
|
×
|
6.35
│
Inside
Diameter (C)
內徑(C) |
× |
28.5
│
Length (D)
長度(D)
|
C5A
│
Material
材質 |
RH
│
Type
形狀
|
3.5
│
Outside
Diameter (A)
外徑(A)
|
×
|
0.8
│
Inside
Diameter (C)
內徑(C) |
× |
4.7
│
Length (D)
長度(D)
|
x |
T/R
│
Taping
編帶
|
|
|
|
(2) Suitable Materials ( 適用材質)
|
| F3B,F4D,F8,C4A,C5A,C5,C5C,C6,E1C,E2,E2D,E3,Y8B,Y11
|
|
|

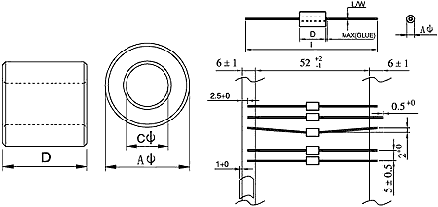

(3) SHAPE (圖形標示)
|
 |
| (4) DIMENSION (尺寸) |
| |
| 1 |
RH 2.5 ×0.8 ×5
|
41 |
RH 11 ×5 ×28 |
| 2 |
RH 2.5 ×1.5 ×6 |
42 |
RH 12 ×4.5 ×20 |
| 3 |
RH 3 ×1.3 ×3 |
43 |
RH 12 ×5.6 ×10 |
| 4 |
RH 3.5 ×0.8 ×6 |
44 |
RH 12 ×5.6 ×20 |
| 5 |
RH 3.5 ×1.0 ×3 |
45 |
RH 12 ×5.6 ×28.5 |
| 6 |
RH 3.5 ×1.0 ×6 |
46 |
RH 12 ×6 ×20 |
| 7 |
RH 3.5 ×1.15 ×10 |
47 |
RH 12 ×6 ×28.5 |
| 8 |
RH 3.5 ×1.3 ×3 |
48 |
RH 13 ×7.1 ×12.7 |
| 9 |
RH 3.5 ×1.3 ×6 |
49 |
RH 12 ×7.1 ×15 |
| 10 |
RH 3.5 ×1.5 ×4 |
50 |
RH 13 ×5.2 ×28.5 |
| 11 |
RH 3.5 ×1.5 ×6 |
51 |
RH 14.2 ×4.5 ×28.5 |
| 12 |
RH 4 ×1.0 ×15 |
52 |
RH 14.2 ×5 ×28.5 |
| 13 |
RH 4 ×1.5 ×3 |
53 |
RH 14.2 ×6.35 ×28.5 |
| 14 |
RH 4 ×1.8 ×5 |
54 |
RH 14.2 ×6 ×28.5 |
| 15 |
RH 4 ×2 ×10 |
55 |
RH 14.2 ×7 ×28.5 |
| 16 |
RH 4 ×2 ×15 |
56 |
RH 14.2 ×8 ×28.5 |
| 17 |
RH 5 ×2.4 ×5 |
57 |
RH 14.2 ×9.5 ×28.5 |
| 18 |
RH 5 ×2.4 ×10 |
58 |
RH 15 ×10 ×28 |
| 19 |
RH 5.95 ×2.15 ×10
|
59 |
RH 16 ×10 ×28.5 |
| 20 |
RH 6 ×3 ×10 |
60 |
RH 16 ×6.35 ×27 |
| 21 |
RH 6 ×3 ×15 |
61 |
RH 16 ×8 ×16 |
| 22 |
RH 6 ×3 ×25 |
62 |
RH 16 ×9.5 ×30 |
| 23 |
RH 6.4 ×3.08 ×12.7 |
63 |
RH 17.5 ×9.5 ×12.7 |
| 24 |
RH 6.5 ×4.3 ×10 |
64 |
RH 17.5 ×9.5 ×18 |
| 25 |
RH 7 ×5.3 ×9.5 |
65 |
RH 17.5 ×9.5 ×28.5 |
| 26 |
RH 7.52 ×2.39 ×7.54 |
66 |
RH 17.5 ×10 ×11 |
| 27 |
RH 7.8 ×3 ×10 |
67 |
RH 17.5 ×10 ×28.5 |
| 28 |
RH 7.8 ×3 ×19 |
68 |
RH 17.5 ×13 ×28.5 |
| 29 |
RH 7.8 ×4.2 ×12.7 |
69 |
RH 17.5 ×6.35 ×28.5 |
| 30 |
RH 7.8 ×4.2 ×28.5 |
70 |
RH 17.5 ×7 ×28.5 |
| 31 |
RH 8 ×3.5 ×30 |
71 |
RH 17.5 ×9.0 ×28.5 |
| 32 |
RH 9.5 ×4.8 ×19 |
72 |
RH 18 ×10 ×28 |
| 33 |
RH 9.5 ×4.8 ×28.4 |
73 |
RH 18 ×9.5 ×28.5 |
| 34 |
RH 9.5 ×5.2 ×9.5 |
74 |
RH 19 ×10 ×28.5 |
| 35 |
RH 9.5 ×5.5 ×19.5 |
75 |
RH 19 ×13 ×29 |
| 36 |
RH 9.5 ×5.5 ×28.5 |
76 |
RH 21 ×13 ×28.5 |
| 37 |
RH 9.8 ×5.2 ×20 |
77 |
RH 21 ×9 ×37 |
| 38 |
RH 10 ×5.5 ×20 |
78 |
RH 24 ×10.9 ×14 |
| 39 |
RH 10 ×5.5 ×28.5 |
79 |
RH 28.5 ×13.8 ×28.6 |
| 40 |
RH 11 ×5 ×20 |
|
|
|
|
|
| |
| |
|
