Products - NiZn [Menu]

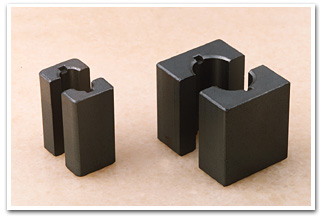

RC

(1) Ordering Code ( 產品名稱 )

C5A
│
Material
材質

RC
│
Type
形狀

17.5
│

Outside
Diameter (A)

外徑(A)

×

9.5
│

Inside Diameter (C)

內徑(C)

×

28.5
│
Length (D)
長度(D)

**Combined with Plastic Csae for FYF-100

(2) Suitable Materials ( 適用材質)

C5A, C5

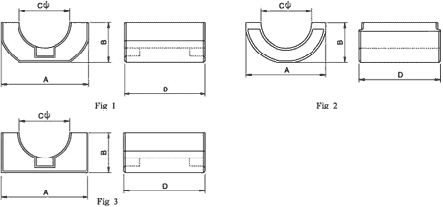

(3) SHAPE (圖形標示)

(4) DIMENSION (尺寸)

　

No.		Fig.
1	RC 8.7 ×4 ×15.4	1
2	RC 10 ×5.1 ×20	1
3	RC 12 ×4.5 ×20	1
4	RC 15 ×7.7 ×29.3	3
5	RC 16 ×9 ×28.4	2
6	RC 17.5 ×9.5 ×28.5	1
7	RC 20.4 ×10 ×10	1
8	RC 24 ×11.5 ×14	2
9	RC 25 ×13 ×28	1
10	RC 26 ×13 ×29.5	3
