DRWW
|
|
| STANDARD TYPE |
|
|
(1) Ordering Code ( 產品名稱 )
|
C5A
│
Material
材質
|
DRWW
│
Type
形狀
|
10
│
 Outside
Diameter (A)
外徑(A)
|
×
|
19
│
Length (D)
長度(D) |
(S)
│
Slot
出線槽
|
|
|
(2) Suitable Materials ( 適用材質)
|
F1B,F3B,F4D,F8,C4A,C5A,C5C,C5,C6,E1C,E2,E2D,E3,
Y5E,Y8B, Y8C,Y8L,Y9,Y9D,Y11 |
|
|

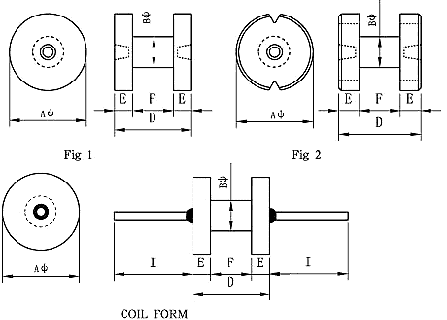

(3) SHAPE (圖形標示)
|
 |
| (4) DIMENSION (尺寸) |
| |
| 1 |
DRWW 1.8 ×2 |
| 2 |
DRWW 2 ×2 |
| 3 |
DRWW 2.3 ×4 |
| 4 |
DRWW 2.4 ×2.3 |
| 5 |
DRWW 2.5 ×2.2 |
| 6 |
DRWW 2.5 ×2.3 |
| 7 |
DRWW 2.5 ×4 |
| 8 |
DRWW 2.5 ×7 |
| 9 |
DRWW 3 ×2.5 |
| 10 |
DRWW 3 ×6 |
| 11 |
DRWW 3 ×8 |
| 12 |
DRWW 3 ×10 |
| 13 |
DRWW 3.3 ×6 |
| 14 |
DRWW 3.5 ×6 |
| 15 |
DRWW 4 ×8 |
| 16 |
DRWW 4 ×10 |
| 17 |
DRWW 4.2 ×6 (S) |
| 18 |
DRWW 4.5 ×9 |
| 19 |
DRWW 4.6 ×5.8 |
| 20 |
DRWW 5 ×12 |
| 21 |
DRWW 5 ×7 (S) |
| 22 |
DRWW 5.7 ×9 (S) |
| 23 |
DRWW 6 ×8 (S) |
| 24 |
DRWW 6 ×12 |
| 25 |
DRWW 6.5 ×7.5 (S) |
| 26 |
DRWW 7.8 ×7.2 (S) |
| 27 |
DRWW 8 ×10 |
| 28 |
DRWW 9 ×12 |
| 29 |
DRWW 9 ×19 (S) |
| 30 |
DRWW 9.5 ×11.5 (S) |
| 31 |
DRWW 10 ×19 |
| 32 |
DRWW 10 ×25 |
| 33 |
DRWW 12 ×21 (S) |
| 34 |
DRWW 13 ×11 |
| 35 |
DRWW 14 ×20 |
| 36 |
DRWW 15 ×11 (S) |
|
|
|
| |
| |
|
