| (1) Ordering Code ( 產品名稱 ) |
C5A
│
Material
材質 |
DR5W
│
Type
形狀 |
14
│
 Outside
Diameter (A)
外徑(A)
|
× |
15
│
Length (D)
長度(D) |
| Note: The
coil form is also available for above types. |
| (2) Suitable Materials ( 適用材質) |
| F1B, F3B, F4D, F8, C4A, C5A, C5C, C5, C6, E1C, E2, E2D, E3 |
 |

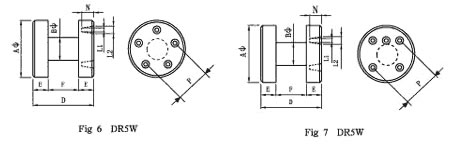

| (3) SHAPE (圖形標示) |
 |
| (4) DIMENSION (尺寸) |
| |
|
NO. |
CORE |
Fig |
|
1 |
DR5W
9×12 |
6 |
|
2 |
DR5W
14×15 |
7 |
|
| |
| |
|
