| (1) Ordering Code ( 產品名稱 ) |
C5A
│
Material
材質
|
DR3W
│
Type
形狀
|
8
│
 Outside
Diameter (A)
外徑
(A)
|
×
|
10
│
Length (D)
長度 (D) |
(S)
│
Slot
出線槽
|
|
Note: Coil form is
also available for above types |
| (2) Suitable Materials ( 適用材質) |
|
F1B, F3B, F4D, F8,
C4A, C5A, C5C, C5, C6, E1C, E2, E2D, E3 |
 |

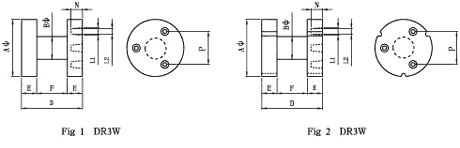

| (3) SHAPE (圖形標示) |
|
| (4) DIMENSION (尺寸) |
|
|
No. |
CORE |
Fig. |
|
1 |
DR3W
4×5.5 |
1 |
|
2 |
DR3W
4.5×5.5(S) |
2 |
|
3 |
DR3W
4.5×7.2(S) |
2 |
|
4 |
DR3W
5×7 |
1 |
|
5 |
DR3W
6×8.3(S) |
2 |
|
6 |
DR3W
8×10 |
1 |
|
7 |
DR3W
8×10(S) |
2 |
|
8 |
DR3W
9×12 |
1 |
|
9 |
DR3W
10×16 |
1 |
|
10 |
DR3W
12×20 |
3 |
|
11 |
DR3W
14×15 |
3 |
|
12 |
DR3W
14×15(S) |
2 |
|
13 |
DR3W
16×18 |
3 |
|
14 |
DR3W
16×18 |
3 |
|
| |
| |
|
