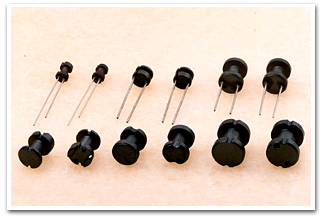

DR2W
|
|
| STANDARD TYPE |
|
|
(1) Ordering Code ( 產品名稱 )
|
C5A
│
Material
材質
|
DR2W
│
Type
形狀
|
16
│
 Outside
Diameter (A)
外徑
(A)
|
×
|
18
│
Length (D)
長度 (D) |
(S)
│
Slot
出線槽
|
(H)
│
Hole
穿孔
|
|
|
(2) Suitable Materials ( 適用材質)
|
| F1B,F3B,F4D,F8,C4A,C5A,C5C,C5,C6,E1C,E2,E2D,E3
|
|
|

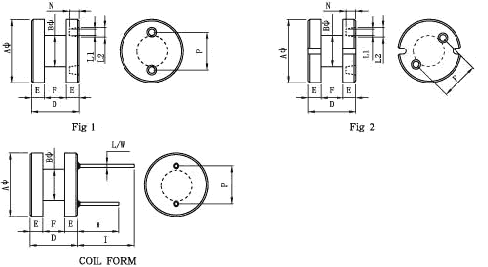

(3) SHAPE (圖形標示)
|
 |
| (4) DIMENSION (尺寸) |
| |
| 1 |
DR2W 3 × 4 |
| 2 |
DR2W 4 × 5.5 |
| 3 |
DR2W 4.2 × 6 (S) |
| 4 |
DR2W 4.45 × 5.5 (S) |
| 5 |
DR2W 4.5 × 7 (S) |
| 6 |
DR2W 5 × 7 |
| 7 |
DR2W 5.8 × 6.5 |
| 8 |
DR2W 6 ×8.3 |
| 9 |
DR2W 6.5 ×7.5 |
| 10 |
DR2W 7 ×8 |
| 11 |
DR2W 7.8 ×6.4 (S) |
| 12 |
DR2W 8 ×10 (S) |
| 13 |
DR2W 8 ×10 |
| 14 |
DR2W 8 ×20 |
| 15 |
DR2W 8 ×25 (S) |
| 16 |
DR2W 9 ×5.8 |
| 17 |
DR2W 9 ×12 |
| 18 |
DR2W 9.1 ×11 (S) |
| 19 |
DR2W 9.6 ×11 (S) |
| 20 |
DR2W 10 ×8 |
| 21 |
DR2W 10 ×12 |
| 22 |
DR2W 10 ×15 (H) |
| 23 |
DR2W 10 ×16 |
| 24 |
DR2W 10 ×22 |
| 25 |
DR2W 11 ×10 (S) |
| 26 |
DR2W 12 ×13 (S) |
| 27 |
DR2W 12 ×15 |
| 28 |
DR2W 12 ×16 (H) |
| 29 |
DR2W 13 ×15 |
| 30 |
DR2W 14 ×15 |
| 31 |
DR2W 15 ×15 (S) |
| 32 |
DR2W 15 ×18 |
| 33 |
DR2W 16 ×18 |
| 34 |
DR2W 16 ×22 |
| 35 |
DR2W 18 ×18 |
| 36 |
DR2W 18 ×20 |
| 37 |
DR2W 18 ×22 |
| 38 |
DR2W 20 ×20 (S) |
|
|
|
| |
| |
|
