| (1) Ordering Code
( 產品名稱 ) |
C6
│
Material
材質
|
R
│
Type
形狀
|
1.65
│
Φ Outside Diameter (A)
外徑(AΦ)
|
× |
14
│
Length (D)
長度(D)
|
(R)
│
Grinding
研磨外徑
|
 |
| (2) Suitable Materials
( 適用材質) |
| F1B, F3B, F4D, F8, C4A, C5A, C5C, C5, C6, E1C, E2, E2D, E3,
Y5E, Y8B, Y8C, Y8L, Y9, Y9D, Y11 |

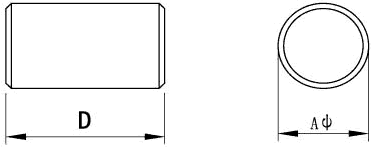

| (3) SHAPE (圖形標示)
|
 |
| (4) DIMENSION (尺寸) |
| |
|
NO. |
CORE |
|
1 |
R 1.2×4.5 |
|
2 |
R 1.5×5 |
|
3 |
R 1.9×6.5 |
|
4 |
R
1.65×14(R) |
|
5 |
R
1.85×7.7 |
|
6 |
R 2×14 |
|
7 |
R 2.6×20 |
|
8 |
R 3×15 |
|
9 |
R 3×25(R) |
|
10 |
R
3.3×17.5 |
|
11 |
R 3.5×25 |
|
12 |
R 4×15 |
|
13 |
R 4×19 |
|
14 |
R 4.4×20 |
|
15 |
R 5×18 |
|
16 |
R 5×25 |
|
17 |
R 5×30 |
|
18 |
R 5.5×15 |
|
19 |
R 5.5×21 |
|
20 |
R 5.85×18 |
|
21 |
R 6×15 |
|
22 |
R 6×20 |
|
23 |
R 6×25 |
|
24 |
R 6×30 |
|
25 |
R 6×38 |
|
26 |
R
6.35×19.5 |
|
27 |
R 6.35×30 |
|
28 |
R 6.5×38 |
|
29 |
R 7×20 |
|
30 |
R 7×38 |
|
31 |
R 8×18.5 |
|
32 |
R 8×20 |
|
33 |
R 8×32 |
|
34 |
R
9.5×22.5 |
|
35 |
R 10×15 |
|
36 |
R 10×25 |
|
37 |
R 10×30 |
|
38 |
R 10×38 |
|
39 |
R 12×25 |
|
40 |
R 16×12 |
|
41 |
R 19×20 |
|
42 |
R 20×25 |
|
43 |
R 21×27 |
|
44 |
R 21×40 |
|
| |
| |
|
