SMD-Type Cores

Cores

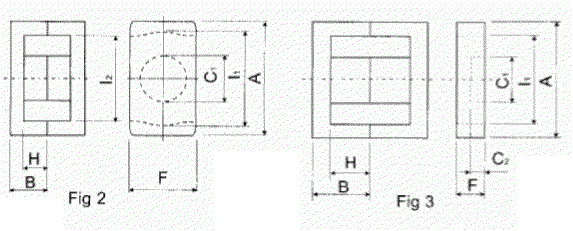

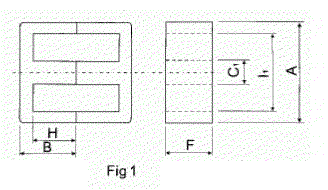

Fig

Dimensions(mm)

Weight

A

2B

C₁

C₂

F

2H

I₁

I₂

(g)

EE-5

1

5.25±0.1

5.3±0.1

1.35±0.1

/

1.95±0.1

4.0±0.15

3.8min

/　

0.2

EER-7.5/5.0

2

7.5±0.15

5.0±0.2

2.6±0.1

/

4.0±0.1

3.5±0.15

6.2±	0.2
	0.1

5.6min

0.38

EER-9.35/3.95

2

9.35±0.2

3.95±0.2

3.0±0.1

/

4.6±0.1

2.4±0.15

7.7±	0.3
	0.1

7.2±0.2

0.5

EER-9.4/4.0/4.5

2

9.4±0.2

4.0±0.2

3.025±0.0775

/

4.5±0.1

2.5±0.2

7.7±0.1

6.7±0.1

0.51

EER-9.35/5.2

2

9.35±0.2

4.7±0.2

3.0±0.1

/

4.6±0.1

3.5±0.15

7.825±0.225

7.2±0.2

5.7

EER-12/5/6

1

120±0.15

5.0±0.2

4.0±0.1

/

6.0±0.1

2.6±0.2

8.4±0.15

　

1.5

EER-9.5/5

2

9.35±0.15

4.9±0.1

3.4±0.1

/

4.9±0.1

3.35±0.15

7.63±0.125

7.0min

0.6

EER-11/5S

2

10.83±0.175

4.9±0.1

4.125±0.125

/

5.9±0.1

3.15±0.15

8.85±0.15

7.9min

1

EER-14.5/6

2

14.5±0.2

5.9±0.2

4.70.1

/

6.7±0.1

3.3±0.2

11.8±0.2

/　

1.8

EET-8.8

3

8.8±	0.4
	0.2

8.5±0.2

3.4±0.1

1.67±0.1

3.1±	0.2
	0.1

5.9±0.2

6.8±	0.3
	0

/　

0.68

EET-9.0

3

9.0±0.2

8.6±0.2

2.4

1.6±	0.08
	0.1

2.5±0.15

6.6±0.2

6.7min

/　

0.5

EE-12.7/13.7A

3

12.75±0.25

13.7±0.3

6.0±0.1

1.85±0.1

3.3±0.15

9.1±0.3

9.0min

/　

1.9

Cores
Material

AL(nH/N²)

Core Loss

Effective

/A

Ae

e

Ve

±25%

(W)max

(mm^-1)

(mm²)

(mm)

(mm-3)

EE-5 PF-2 270 0.06 4.7 2.7 12.5 33.5

EER-7.5/5.0 PF-2 670 0.065 2.73 5.31 14.5 77

EER-9.35/3.95 PF-2 1050 0.065 2 7.07 14.5 100.04

EER-9.4/4.0/4.5 PF-4 2700 0.065 20 7.08 14.4 103.4

EER-9.35/5.2 PF-2 850 0.065 2.31 7.07 16.35 115.6

EE-12/5/6 PF-2 2100 0.4 0.72 18.1 13.1 236.5

PF-2B 2300

EER-9.5/5 PF-2 950 0.13 1.61 8.6 14 121

EER-11/5S PF-2 1400 0.18 1.25 11.7 14.6 170.2

EER-14.5/6 PF-2 1600 0.25 1.08 17.6 19 333

EET-8.8 PF-2B 540 0.09 3.63 5.68 20.6 117

EET-9.0 PF-3 559 0.06 5.78 3.84 22.2 85.3

EET-12.7/13.7A PF-2 810 0.3 2.3 12.3 28.4 349

PF-2B 835
