RM-Type Cores
| | |
|
| Cores |

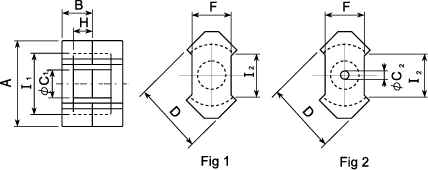

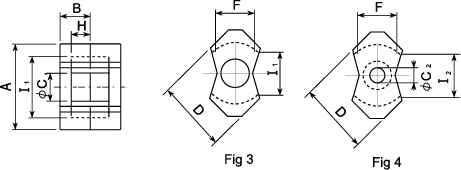

Fig | Dimensions(mm) | Weight | | A | B | ฃXC1 | ฃXC2 | D | F | H | I1 | I2(min) | (g) | | RM-4 | 1 | 11.10กำ0.25 | 5.2กำ0.05 | 3.8กำ0.1 | / | 9.73กำ0.2 | 4.5กำ0.15 | 3.6กำ0.1 | 8.3กำ0.2 | 5.8 | 1.9 | | RM-5 | 1 | 14.65กำ0.25 | 5.2กำ0.05 | 4.8กำ0.15 | / | 12.05กำ0.4 | 6.6กำ0.2 | 3.25กำ0.1 | 10.4กำ0.2 | 6.0 | 3.3 | | RM-5H | 2 | 14.65กำ0.25 | 5.2กำ0.05 | 4.8กำ0.15 | | 12.05กำ0.4 | 6.6กำ0.2 | 3.25กำ0.1 | 10.4กำ0.2 | 6.0 | 3.0 | | RM-6 | 3 | 17.6กำ0.3 | 6.2กำ0.05 | 6.3กำ0.1 | / | 14.4กำ0.3 | 8.0กำ0.2 | 4.1กำ0.15 | 12.65กำ0.25 | 8.4 | 5.5 | | RM-6H | 4 | 17.6กำ0.3 | 6.2กำ0.05 | 6.3กำ0.1 | | 14.4กำ0.3 | 8.0กำ0.2 | 4.1กำ0.15 | 12.65กำ0.25 | 8.4 | 4.8 | | RM-8 | 1 | 22.75กำ0.45 | 8.2กำ0.07 | 8.4กำ0.15 | / | 19.35กำ0.35 | 10.8กำ0.2 | 5.5กำ0.1 | 17.3กำ0.3 | 9.8 | 12.2 | | RM-10 | 1 | 27.85กำ0.65 | 9.3กำ0.05 | 10.7กำ0.2 | / | 24.15กำ0.55 | 13.25กำ0.25 | 6.35กำ0.15 | 21.65กำ0.45 | 11.3 | 23.1 | | RM-12 | 1 | 36.75กำ0.65 | 11.7กำ0.05 | 12.6กำ0.2 | / | 29.25กำ0.55 | 16.0(ref.) | 8.55กำ0.15 | 25.5กำ0.5 | 15.0(ref.) | 41.2 |
| Cores |
Material |
AL-Value
(nH/N2) | Effective Parameter |
al/A
(mm-1) | Ae
(mm2) | le
(mm) | Ve
(mm3) | |
| RM-4
RM-4M
| PF-2
PF-2B
PF-3
PF-5*
PF-7*
PF-10* | 1,000กำ25%
1,100กำ25%
1,300กำ25%
2,300min
2,625min
3,710min | 1.62 | 14.0 | 22.7 | 317.8 | RM-5
RM-5M
| PF-2
PF-2B
PF-3
PF-5*
PF-7*
PF-10* | 2,000กำ25%
2,130กำ25%
2,400กำ25%
3,600min
4,650min
6,700min | 0.94 | 23.7 | 22.4 | 530.0 | RM-5H
RM-5HM
| PF-2
PF-2B
PF-3
PF-5*
PF-7*
PF-10* | 1,565กำ25%
1,650กำ25%
1,900กำ25%
2,920min
3,765min
5,500min | 1.02 | 21.0 | 21.4 | 450.0 | RM-6
RM-6M
| PF-2
PF-2B
PF-3
PF-5*
PF-7*
PF-10* | 2,500กำ25%
,640กำ25%
2,980กำ25%
4,560min
6,300min
6,650min | 0.78 | 36.6 | 28.6 | 1050.0 | RM-6H
RM-6HM
| PF-2
PF-2B
PF-3
PF-5*
PF-7*
PF-10* | 2,200กำ25%
2,460กำ25%
2,640กำ25%
3,685min
5,100min
5,460min | 0.86 | 31.0 | 27.0 | 840.0 | RM-8
RM-8M
| PF-2
PF-2B
PF-3
PF-5*
PF-7*
PF-10* | 3,700กำ25%
3,800กำ25%
4,400กำ25%
5,820min
8,070min
10,500min | 0.59 | 64.0 | 38.0 | 2430.0 | RM-10
RM-10M
| PF-2
PF-2B
PF-3
PF-5*
PF-7*
PF-10* | 4,800กำ25%
5,200กำ25%
5,760กำ25%
7,650min
10,870min
14,630min | 0.45 | 98.0 | 44.0 | 4310.0 | RM-12
RM-12M
| PF-2
PF-2B
PF-3
PF-5*
PF-7*
PF-10* | 5,700กำ25%
5,900กำ25%
6,800กำ25%
8,200min
12,500min
16,500min | 0.42 | 134.9 | 56.8 | 7658.0 | | Notes: | Test Conditions : | 1KHz | 0.5mA | 100Ts | | | | Core Gapping : | Gapped Core is available on request | | | *Mark : | Mirror Lapping | | | |
|
| |
| |
|
