EET-Type Cores

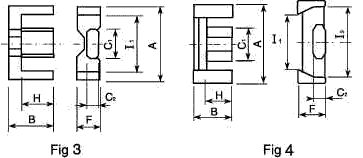

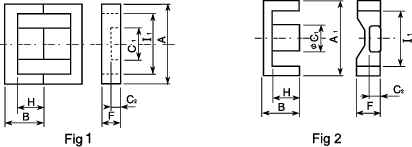

Cores	Fig	Dimensions(mm)							Weight
Cores	Fig	A	B	C1	C2	F	H	I	(g/set)
EET-5.25	1	5.25±0.15	2.6±0.075	1.85±0.1	1.3±0.1	3.0±0.15	1.9±0.075	3.85±0.15	0.25
EET-12.5B	2	12.5±0.3	6.2±0.1	5.4±0.15	2.0±0.1	3.5±0.1	4.55±0.15	9.0±0.25	1.9
EET-13D	3	13.2±0.2	6.6±0.2	5.6±0.15	2.05±0.1	4.6±0.15	4.5±0.2	8.3min	2.2
EET-15B	2	15.0±0.3	7.5±0.2	5.3±0.15	2.3±0.1	4.6±0.15	5.5±0.15	11.0±0.25	2.9
EET-17D	3	17.8±0.4	8.75±0.2	7.4±0.2	2.8±0.15	6.0±0.2	6.05±0.2	12.0±0.4	4.9
EET-19D	3	19.6±0.5	9.75±0.2	8.2±0.2	2.4±0.15	6.0±0.2	7.25±0.2	13.4±0.5	5.2
FEET-19DS	3	19.6±0.5	9.45±0.2	8.2±0.2	2.4±0.15	6.0±0.2	6.95±0.2	13.4±0.5	5.2
EET-20C	4	20.0±0.55	10.0±0.15	8.9±0.2	3.6±0.15	6.65±0.15	7.7±0.25	15.4±0.5	7.2
EET-20CL	4	20.0±0.55	12.6±0.15	8.9±0.2	3.7±0.15	6.6±0.15	10.3±0.25	16.0±0.5	9.1
EET-20/23/5.6	4	20.0±0.55	11.5±0.15	8.9±0.2	3.6±0.15	5.6±0.1	9.3±0.15	15.4±0.5	7.5
EET-25D	3	25.4±0.5	12.5±0.25	10.5±0.25	4.0±0.2	8.0±0.25	9.0±0.2	17.0min	13.2
EET-25C	4	25.5±0.65	12.5±0.15	11.4±0.2	5.2±0.15	9.2±0.2	9.3±0.25	19.3±0.6	16.7
EET-27D	3	27.0±0.4	16.0±0.2	13.0±0.3	4.0±0.1	8.0±0.2	12.0±0.3	18.5min	18
EET-30C	4	30.0±0.8	15.0±0.15	14.6±0.25	4.9±0.15	9.1±0.2	11.2±0.3	22.4±0.75	22.5
EET-30D	3	30.0±0.4	17.5±0.2	15.0±0.3	4.0±0.1	8.0±0.2	13.0±0.3	20.0min	23

Coress	Material	AL(nH/N²)	Effective Parameter
		±25%	al/A	Ae	le	Ve	Acp	Acw
			(mm^-1)	(mm²)	(mm)	(mm³)	(mm²)	(mm²)
EET-5.25	PF-2	420	3.73	3.15	11.75	36.97	2.41	4.85
	PF-2B	450
EET-12.5B	PF-2	820	2.5	11.4	28.5	325	10.8	16.3
	PF-2B	870
EET-13D	PF-2	890	2.4	11.9	28.5	339.5	10.5	22.9
	PF-2B	940
EET-15B	PF-2	950	2.44	13.5	32.9	442.8	12.2	31.4
	PF-2B	1000
EET-17D	PF-2	1150	1.91	20.1	38.5	774.9	18.8	46
	PF-2B	1240
EET-19D	PF-2	1100	1.89	23	43.3	995.9	19.3	59.5
	PF-2B	1190
EET-19DS	PF-2	1100	1.84	23	42.3	973.4	19.3	57
	PF-2B	1190
EET-20C	PF-2	1200	1.46	31.4	46.1	1450.8	30.6	50.1
	PF-2B	1370
EET-20CL	PF-2	950	2	28.8	57.3	1647	30.9	73
	PF-2B	1290
EET-20/23/5.6	PF-2	1220	1.93	27	52.1	1408	32	60.5
	PF-2B	1310
EET-25D	PF-2	1550	1.4	43	59	2543	40.7	117
	PF-2B	1670
EET-25C	PF-2	2400	0.96	58.6	56.5	3314.1	59.3	67.9
	PF-2B	2570
EET-27D	PF-2	1540	1.51	48.3	72.8	3511.2	44	103.2
	PF-2B	1780
EET-30C	PF-2	2500	0.96	70.1	67.3	4313.4	71.5	174.7
	PF-2B	2670
EET-30D	PF-2	1840	1.33	56.4	75.1	4241.8	56.5	111.8
	PF-2B	2000

Notes:	Test conditions:		1KHz	0.5mA	100Ts
	Core Gapping :		Gapped Core is available on request
