EER-Type Cores
| |

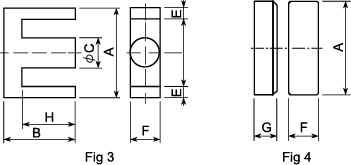

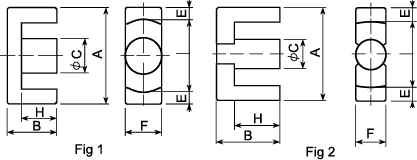

 | | Cores | Fig | Dimensions(mm) | Weight | | A | B | C | F | H | I1(min) | I2 | (g/Set) | | EER-11/3.9 | 1 | 10.83กำ0.175 | 1.925กำ0.05 | 4.125กำ0.125 | 5.9กำ0.1 | 1.05กำ0.075 | 8.85กำ0.15 | 7.9 | 0.9 | | EER-14.5/6 | 2 | 14.5กำ0.2 | 2.95กำ0.1 | 4.7กำ0.1 | 6.7กำ0.1 | 1.65กำ0.1 | 11.8กำ0.2 | ก@/ | 1.8 | | EER-24.4 | 3 | 24.4กำ0.6 | 14.45กำ0.15 | 8.5กำ0.25 | 8.5กำ0.4 | 10.1กำ0.2 | 18.0 | ก@/ | 20.0 | | EER-25S | 1 | 25.0กำ0.4 | 5.6กำ0.05 | 11.0กำ0.2 | 18.0กำ0.3 | 3.2กำ0.15 | 22.0กำ0.4 | 14.5 | 15.5 | | EER-25L | 1 | 25.0กำ0.4 | 8.0กำ0.1 | 11.0กำ0.2 | 18.0กำ0.3 | 5.15กำ0.15 | 22.0กำ0.4 | ก@/ | 20.8 | | EER-25.5A | 4 | 25.5กำ0.6 | 9.3กำ0.2 | 7.5กำ0.25 | 7.5กำ0.25 | 6.2กำ0.2 | 19.8 | ก@/ | 11.0 | | EER-25.5B | 4 | 25.5กำ0.6 | 15.9กำ0.3 | 7.5กำ0.25 | 7.5กำ0.25 | 12.8กำ0.3 | 19.8 | ก@/ | 15.9 | | EER-28 | 3 | 28.55กำ0.55 | 14.0กำ0.2 | 9.9กำ0.25 | 11.4กำ0.25 | 9.65กำ0.25 | 21.2 | ก@/ | 28.0 | | EER-28L | 3 | 28.55กำ0.55 | 16.9กำ0.25 | 9.0กำ0.25 | 11.4กำ0.25 | 12.53กำ0.25 | 21.2 | ก@/ | 33.0 | | EER-30/16 | 1 | 30.0กำ0.4 | 8.0กำ0.15 | 11.0กำ0.2 | 20.0กำ0.3 | 5.3กำ0.2 | 26.0กำ0.4 | 19.45กำ0.4 | 26.0 | | EER-30 | 3 | 29.8กำ0.8 | 15.8กำ0.2 | 9.5กำ0.3 | 9.5กำ0.3 | 11.0กำ0.3 | 22.7กำ0.7 | ก@/ | 28.0 | | EER-34 | 3 | 34.2กำ0.8 | 17.3กำ0.2 | 10.8กำ0.3 | 10.8กำ0.3 | 12.1กำ0.3 | 26.3กำ0.7 | ก@/ | 41.0 | | EER-35 | 3 | 35.0กำ0.5 | 16.8กำ0.3 | 11.3กำ0.25 | 11.3กำ0.25 | 10.8กำ0.3 | 25.6 | ก@/ | 45.1 | | EER-35L | 3 | 35.0กำ0.5 | 20.7กำ0.3 | 11.3กำ0.25 | 11.3กำ0.25 | 14.7กำ0.3 | 25.6 | ก@/ | 52.0 | | EER-39/42 | 3 | 39.3กำ0.4 | 20.85กำ0.25 | 12.8กำ0.3 | 12.8กำ0.2 | 15.35กำ0.25 | 28.6 | ก@/ | 65.0 | | EER-39L | 3 | 39.0กำ0.4 | 22.2กำ0.2 | 12.8กำ0.2 | 12.8กำ0.25 | 17.0กำ0.25 | 28.6 | ก@/ | 69.0 | | EER-40/44.8 | 4 | 40.0กำ0.5 | 22.4กำ0.2 | 13.3กำ0.25 | 13.3กำ0.25 | 16.0กำ0.2 | 29.3 | ก@/ | 78.2 | | EER-42L | 3 | 42.0กำ | 0.8 | 25.0กำ0.15 | 17.3กำ0.25 | 17.3กำ0.25 | 17.5กำ0.15 | 30.3กำ0.5 | ก@/ | 131.0 | | 0.5 | ก@/ | | Notes: | FEER-19.6 FEER-22 Under Development | | | Cores | Material | AL(nH/N2) | Effective Parameter | | กำ25% | al/A | Ae | le | Ve | Acp | Acw | | ก@ | (mm-1) | (mm2) | (mm) | (mm3) | (mm2) | (mm2) | | EER-11/3.9 | PF-2 | 1,500 | 1.10 | 11.4 | 12.6 | 143.4 | 12.9 | 5.0 | | PF-2B | 1,480 | | EER-14.5/6 | PF-2 | 1,600 | 1.08 | 17.6 | 19.0 | 333.0 | 17.3 | 11.2 | | PF-2B | 1,650 | | EER-14.5/6M | PF-10 | 6600min | | EER-24.4 | PF-2 | 2,200 | 1.10 | 58.6 | 64.3 | 3763.6 | 56.8 | 104.0 | | PF-2B | 2,310 | | EER-25S | PF-2 | 6,500 | 0.32 | 95.1 | 30.7 | 2919.8 | 95.0 | 35.2 | | EER-25L | PF-2 | 5,700 | 0.39 | 100.3 | 39.2 | 3934.1 | 95.0 | 56.7 | | EER-25.5A | PF-2 | 1,920 | 1.07 | 44.4 | 47.5 | 2110.4 | 44.2 | 78.7 | | PF-2B | 2,040 | | EER-25.5B | PF-2 | 1,425 | 1.64 | 44.0 | 72.3 | 3180.0 | 44.2 | 157.4 | | PF-2B | 1,500 | | EER-28 | PF-2 | 3,050 | 0.74 | 88.3 | 65.7 | 5798.9 | 77.0 | 109.0 | | PF-2B | 3,430 | | EER-28L | PF-2 | 2,800 | 0.88 | 87.7 | 77.1 | 6762.3 | 77.0 | 141.6 | | PF-2B | 2,990 | | EER-30/16 | PF-2 | 5,800 | 0.39 | 109.8 | 43.2 | 4740.1 | 95.0 | 79.5 | | EER-30 | PF-2 | 2,400 | 0.95 | 76.6 | 72.7 | 5569.6 | 70.8 | 145.2 | | PF-2B | 2,740 | | EER-34 | PF-2 | 3,000 | 0.82 | 97.0 | 79.0 | 7665.1 | 91.6 | 187.6 | | PF-2B | 3,330 | | EER-35 | PF-2 | 3,700 | 0.67 | 114.0 | 76.8 | 8755.4 | 100.2 | 154.4 | | PF-2B | 3,830 | | EER-35L | PF-2 | 3,050 | 0.82 | 112.8 | 92.2 | 10402.2 | 100.3 | 210.2 | | PF-2B | 3,300 | | EER-39/42 | PF-2 | 3,200 | 0.71 | 133.8 | 95.6 | 12795.6 | 128.6 | 259.4 | | EER-39L | PF-2 | 3,150 | 0.77 | 135.4 | 103.7 | 14049.9 | 128.7 | 268.6 | | EER-40/44.8 | PF-2 | 3,800 | 0.67 | 148.0 | 99.4 | 14730.0 | 138.0 | 267.0 | | EER-42L | PF-2 | 5,200 | 0.46 | 240.4 | 110.9 | 26664.1 | 235.0 | 230.1 | | Notes: | Test Conditioins: | 1KHz | 0.5mA | 100Ts | | | | | Core Gapped: Gapped Core is available according on request. |
|
| |
| |
|
