Products

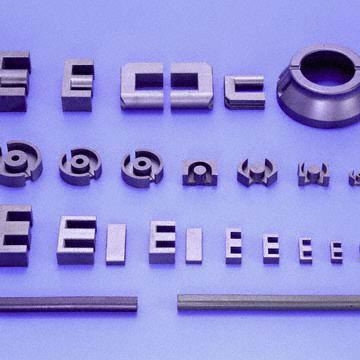

The Ferrite are class of non-metallic magnetic materials formed by mixture of various mettalic oxides, which react in the solid state at high temperatures. These have come to their own in the past 50 years. During this time, their use has become established in many branches of communication and electronic engineering.

STANDARD PRODUCTS

 Iron Powder as a core material has been widely used. The distributed air gap properties in iron powder cores also make them extremely well-suited for a variety of energy storage inductor applications

 Iron Powder is a COST-EFFECTIVE design. It can also be used in place of ferrites and iron-alloy lamination requiring a gap. These Cores are coated with Epoxy Resin coating, which can withstand a dielectric strength of 500 Volts minimum.

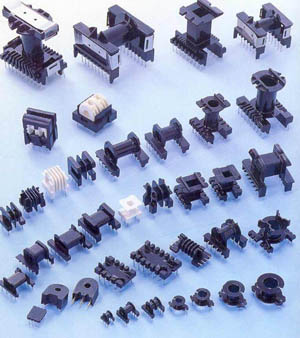

Bobbins for transformer cores are also available in wide range consisting of EE, EI, ETD, ET, EP, RM , UU and SMD type s in horizontal and vertical.

If you need Bobbins to match your ferrite cores, do not hesistate to contact us with

your requirement & drawings.

1. EE CORES

2 EI CORES

3.EER CORES

4.EIR CORES

5. RM CORES

6. EP, EK, EET CORES

7. PLANAR TYPE CORES

8. PQ  and  CI  CORES

9. TORIODAL CORES

10. UU , UI , UC CORES

11. SMD CORES

12. PS, PP POT CORES

13.  IRON POWDER CORES

14. EMI SUPPRESSION CORES

15.  I.F.T.  CORES

16. BOBBINS

Contact the our Sales Team for OEM products, with special specification requirements.
